Aluminum Customize Profile
An aluminum solar panel frame is a structural component used around the perimeter of a photovoltaic (PV) module. It supports the edges of the solar panel, helps protect the laminated glass and other module components, and provides an interface for installation within a mounting system.
Aluminum alloys are commonly used for PV module frames because they offer relatively low weight, corrosion resistance, and manufacturing flexibility. A properly designed aluminum frame also allows mounting hardware and other structural components to be integrated into the solar installation.
Alumag supplies 6063 aluminum alloy profiles with customizable lengths, product-dependent widths, and different processing options. Its aluminum solar panel frame offering supports cutting, bending, color selection, surface treatment, and mold customization according to project requirements.
As a make-to-order aluminum product supplier, Alumag Aluminum Tech (Taicang) Co., Ltd. provides customized aluminum components for industrial and construction applications. Customers can supply drawings and dimensional requirements to discuss suitable profile configurations for their PV module projects.
Alumag provides the following material and customization specifications for its aluminum solar panel products.
Parameter | Specification |
|---|---|
Product Name | Aluminum Solar Panel Frame for PV Module |
Metal | Aluminum alloy |
Material Grade | 6063 |
Length (cm) | Customizable |
Width (cm) | It depends on the product |
Shape | Profiled aluminum panel |
Product Characteristics | Flame retardant,Corrosion resistance,Moisture-proof,100% recovery,etc. |
Customized Service | Cutting,Bending,Colour,Surface treatment,Mold customization |
Product Model | Aluminum Customize Profile |
The aluminum frame dimensions depend on the PV module design. Buyers should specify the required frame length, cross-sectional width, height, wall thickness, and installation features through technical drawings.
The aluminum material is noncombustible under ordinary conditions and suitable for recycling. However, fire performance, moisture resistance, and material recovery must also be considered in relation to the complete PV module, its finishing materials, and the applicable recycling process.
Alumag's product information also includes a broader aluminum alloy plate offering with the following specifications.
Parameter | Specification |
|---|---|
Product | 1100/2024/3003/5052/6061/7075 Aluminum Alloy Plate with Customized Requirements |
Thickness | 0.2mm-500mm |
Width | 20mm-3000mm |
Length | As customer's requirements |
Temper | temper H, temper O, temper T |
Material Series | 1,2,3,5,6,7 series aluminum sheet/coil |
Applications | Building and construction material, decoration, curtain wall, shelter, oil tank, mould |
Surface Protection | Every piece could be covered with PE film or paper |
Packing | Export standard wooden pallets (as per requirements) |
Payment Terms | 30% T/T in advance as deposit,70% before shipment |
Minimum Order Quantity | 5-12 tons per size |
Delivery Time | 30 days after receiving deposit |
Loading Port | Any port in China |
These additional specifications describe aluminum plate, sheet, and coil products within the broader material offering. Their thickness and width ranges are not the dimensional specifications of an assembled solar panel frame.
Buyers looking for alternative aluminum grades can also review the Aluminum Material (ASTM) product range.
Aluminum has a lower density than steel, making it suitable for applications where component weight matters. In photovoltaic installations, lightweight framing can simplify module handling and help limit unnecessary mass in the overall assembly.
The final weight of an aluminum solar panel frame depends on its cross-sectional geometry, wall thickness, length, and connection design. Weight reduction must be balanced with the stiffness and strength required by the PV module.
6063 is an aluminum-magnesium-silicon alloy widely used in extruded profiles. It offers good extrusion characteristics, corrosion resistance, and suitability for decorative surface finishing.
These properties make it a practical material for many architectural and solar-related framing applications. The finished frame's mechanical performance depends on the selected material condition, profile dimensions, and manufacturing process.
Aluminum naturally forms a thin oxide layer that helps protect the underlying metal against corrosion in many environments.
Additional surface treatments may be selected to provide further protection or improve appearance. In outdoor solar installations, the appropriate finish depends on moisture exposure, atmospheric conditions, and contact with surrounding materials.
Aluminum framing components can be suitable for environments exposed to rain, humidity, and condensation when properly designed and finished.
The aluminum frame itself does not make an entire PV module waterproof. The module's edge seals, junction box, electrical connections, and mounting interfaces must also provide appropriate environmental protection.
Aluminum is a recyclable metal that can be recovered and processed into new aluminum products.
The product's listed recovery characteristic reflects this material advantage. Actual recovery rates depend on collection, separation, recycling facilities, and the complete product construction.
Alumag provides cutting, bending, color selection, surface treatment, and mold customization services.
These options support the production of aluminum profiles according to different PV module dimensions, frame geometries, and installation requirements.
Material selection is an important part of solar panel frame design. The aluminum alloy must support the required profile geometry, mechanical loads, surface treatment, and long-term exposure conditions.
6063 aluminum belongs to the 6000 series and contains magnesium and silicon as principal alloying elements.
It is commonly selected for extruded components requiring a combination of manufacturability, corrosion resistance, and surface finish quality.
For PV module framing, the suitability of 6063 depends on the finished profile's geometry and material condition. The alloy designation alone does not establish a particular frame load capacity.
Aluminum extrusion allows continuous profiles to be produced with defined cross-sectional shapes.
For a solar panel frame, this can include channels for the module laminate, external mounting features, and surfaces intended for frame connections.
The required geometry must be compatible with the extrusion process and the intended assembly.
A solar panel frame must resist forces transferred through the PV module and mounting system.
These may include loads associated with wind, snow, handling, and installation. Actual performance depends on the complete frame design, module dimensions, material condition, fastening method, and installation arrangement.
Engineering evaluation is required where the frame forms part of a load-bearing PV module assembly.
The cross-sectional design of an aluminum solar panel frame influences how the module is supported and how loads are transferred to the mounting system.
A typical framed PV module uses aluminum members around its perimeter. These members must fit the panel edges and connect securely at the corners.
A solar panel frame profile may include a channel for the laminated module edge, supporting surfaces, and external geometry for mounting.
The required channel width depends on the thickness and construction of the solar module.
The profile drawing should identify critical dimensions, including channel depth, wall thickness, and mounting interfaces.
The corners connect individual frame members into a complete rectangular assembly.
Corner connections may use suitable mechanical joining methods, including purpose-designed corner inserts or other compatible hardware.
Connection strength and dimensional accuracy are important because poorly aligned corners can affect module assembly and structural performance.
The frame supports the perimeter of the PV laminate.
Its geometry must account for the panel thickness, tolerances, and the specified assembly method. Excessive localized pressure or improper fit may damage the glass or other module components.
Solar module frames may include surfaces or openings intended for connection to mounting rails, clamps, or other supporting hardware.
The interface must be compatible with the chosen installation system.
Mounting arrangements should follow the engineering requirements of the complete PV module and support structure.
Customized processing allows aluminum frame components to be prepared according to different module designs and installation requirements.
Alumag lists cutting, bending, color selection, surface treatment, and mold customization among its available services.
Frame profiles must be cut to dimensions corresponding to the finished PV module.
Cutting accuracy affects corner alignment and the final frame size. Buyers should specify the required lengths, end geometry, and any critical tolerances.
Bending may be required for certain customized aluminum components or supporting structures.
The feasibility of bending depends on the alloy, material condition, wall thickness, and cross-sectional geometry.
For conventional rectangular solar panel frames, separate straight members and corner connections are often used instead of bending the entire perimeter from a single profile.
Aluminum profiles can be specified with different appearance requirements.
Color selection should account for the surface treatment, intended exposure, and desired visual consistency.
For PV applications, the finishing method must also be compatible with the module's mechanical and electrical design.
Surface treatment can help protect the aluminum profile and provide the desired appearance.
The selected treatment should consider environmental exposure, contact conditions, and any areas that require electrical continuity.
A customized aluminum extrusion profile may require a dedicated die to produce the intended cross-section.
Buyers should provide technical drawings that identify dimensions, cavities, channels, and functional interfaces.
Tooling requirements depend on the complexity and manufacturability of the proposed design.
Solar panel frames are often exposed to outdoor weather conditions for extended periods.
The aluminum alloy and surface finish should therefore be selected with consideration for moisture, temperature variation, ultraviolet exposure, and atmospheric contaminants.
Aluminum develops a protective oxide layer naturally when exposed to air.
This layer contributes to its resistance to corrosion under many conditions. However, corrosion behavior can change in environments containing salts, aggressive chemicals, or trapped moisture.
Anodizing is commonly used on suitable aluminum profiles to create a controlled oxide layer.
It can enhance surface durability and improve appearance. The required treatment should be selected according to the installation environment and relevant project specifications.
Solar panel frames may be connected to stainless steel fasteners or other metal mounting components.
Where dissimilar metals are electrically connected in a wet environment, galvanic corrosion may become a concern.
The connection design should consider material compatibility, drainage, protective finishes, and suitable isolation where necessary.
Outdoor aluminum frames may collect dust, dirt, or deposits over time.
Cleaning methods should be compatible with the selected finish. Abrasive materials and aggressive chemicals should be avoided when they could damage the protective surface.
Aluminum frames are used in photovoltaic module assemblies and related solar mounting applications.
The required profile design depends on the module size, mounting configuration, environmental conditions, and structural requirements.
Residential PV systems commonly use framed solar modules attached to rooftop mounting structures.
An aluminum frame provides perimeter support and an interface for compatible mounting hardware.
The complete installation must account for roof structure, wind exposure, drainage, and mounting system requirements.
Commercial buildings may use larger PV arrays with multiple framed modules.
Consistent frame dimensions and compatible mounting interfaces are important for efficient assembly across the installation.
The selected frames must meet the applicable module and mounting system requirements.
Ground-mounted photovoltaic systems use supporting structures designed for the site's environmental and mechanical conditions.
Aluminum solar frames can form part of the module assembly installed on these structures.
Frame selection should consider the module dimensions, mounting method, and specified design loads.
Some photovoltaic projects require non-standard module dimensions or specialized frame geometry.
Customized aluminum profiles can be considered where standard frame sections do not match the product design.
The required profile should be defined through drawings and evaluated as part of the completed module assembly.

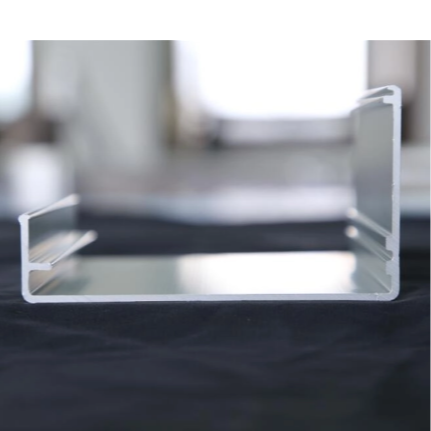

Selecting a suitable aluminum frame requires more than choosing a particular alloy grade.
The frame must fit the PV module, accommodate the mounting system, and meet the required mechanical and environmental conditions.
The first step is to establish the finished module length, width, and thickness.
These dimensions influence the frame members, corner connections, and laminate support geometry.
Different frame profiles provide different mounting and support features.
Buyers should confirm the channel dimensions, wall thickness, external height, and mounting interface requirements.
Wind, snow, and installation loads can place significant forces on a PV module frame.
The required mechanical performance depends on the module design and mounting conditions.
The selected frame should be evaluated through appropriate engineering calculations and product testing.
Outdoor exposure, appearance, and electrical connection requirements can influence the choice of surface treatment.
The selected finish should match the intended environment and assembly arrangement.
Frame design must be coordinated with corner connectors, clamps, mounting rails, and other relevant components.
Compatibility should be checked using drawings and installation specifications.
Accurate frame dimensions support proper assembly and alignment.
Critical tolerances should be identified in the purchasing drawings, particularly for the laminate channel, corner joints, and mounting features.
Consistent dimensions and suitable surface conditions are important for aluminum frame components used in photovoltaic modules.
Inspection requirements should correspond to the agreed technical drawings and intended assembly.
Relevant dimensions may include profile height, width, wall thickness, channel opening, cut length, and straightness.
Critical mounting and corner connection features may require additional dimensional verification.
Surface inspection may identify scratches, visible damage, coating irregularities, or defects that affect appearance and use.
Acceptance requirements depend on the selected finish and its intended function.
Frame components should fit together according to the intended connection design.
Suitable assembly checks may include corner alignment, connector engagement, and compatibility with the module edge.
The broader aluminum material offering lists PE film or paper for surface protection and export-standard wooden pallets.
Packaging should be selected according to profile length, surface finish, quantity, and transportation conditions.
For finished frame profiles, suitable separation and protective materials can reduce surface damage during shipment.
Alumag Aluminum Tech (Taicang) Co., Ltd. supplies make-to-order aluminum products for customers requiring customized metal components.
The product identifies 6063 aluminum alloy for profiled aluminum components.
This material is commonly used in extrusion applications requiring defined geometry and a suitable surface finish.
Frame length is customizable, while width depends on the product design.
Customers can communicate the required dimensions through drawings and application specifications.
The listed services include cutting, bending, color customization, surface treatment, and mold customization.
These options allow buyers to discuss project-specific aluminum profile requirements.
The company's broader aluminum material offering includes different alloy series and product forms.
This provides additional options for customers sourcing aluminum materials and customized components.
Aluminum offers a useful combination of low weight, corrosion resistance, and extrusion flexibility.
These properties allow manufacturers to produce profiles with module-support channels and mounting features. The final frame must still be engineered to meet the mechanical requirements of the PV module.
Yes. Some photovoltaic modules use frameless designs.
However, a frameless module requires appropriate edge construction, handling procedures, and mounting hardware. A module designed for an aluminum frame should not have its frame removed without engineering approval.
Aluminum frames can be used in coastal installations when suitable materials, protective finishes, fasteners, and mounting arrangements are selected.
Salt exposure may increase corrosion risks, particularly at metal connections or locations where moisture collects. Project requirements should reflect the environmental conditions.
PV installations must follow the applicable electrical safety and bonding requirements.
Anodized surfaces can affect electrical contact because the oxide layer is relatively insulating. Bonding or grounding arrangements should use suitable components and follow the instructions for the certified module and mounting system.
The appropriate response depends on the type and extent of damage.
Minor cosmetic surface marks may not affect structural performance, while bent members, cracked corners, or damaged mounting areas can compromise the module assembly. Structural frame damage should be evaluated according to the module manufacturer's requirements.
A solar module frame surrounds and supports the photovoltaic laminate.
A mounting rail is part of the structure used to secure modules to a roof, ground-mounted rack, or other supporting surface. The two components have different functions and engineering requirements.
Yes. Aluminum is widely recyclable and can be recovered for further metal processing.
The actual recycling rate depends on collection, separation, recycling facilities, and the condition of the recovered material. A complete PV module also contains glass, polymers, and electrical components requiring separate handling.
Galvanic corrosion can occur when dissimilar metals make electrical contact in the presence of moisture or another electrolyte.
The corrosion risk depends on the metals involved, the environment, and the connection design. Suitable material selection, protective finishes, and isolation methods can help manage this risk.
No. Frame dimensions, flange geometry, and permitted clamping locations vary among PV module designs.
Mounting clamps must be compatible with the frame and the module manufacturer's installation requirements. Using unsuitable clamps may damage the frame or affect mechanical performance.
Buyers should provide the required material, PV module dimensions, profile cross-section, cut lengths, surface treatment, and estimated quantity.
Technical drawings should also identify corner connections, mounting features, critical tolerances, and any special assembly requirements.
