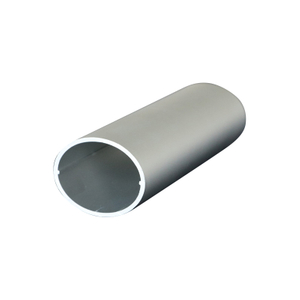

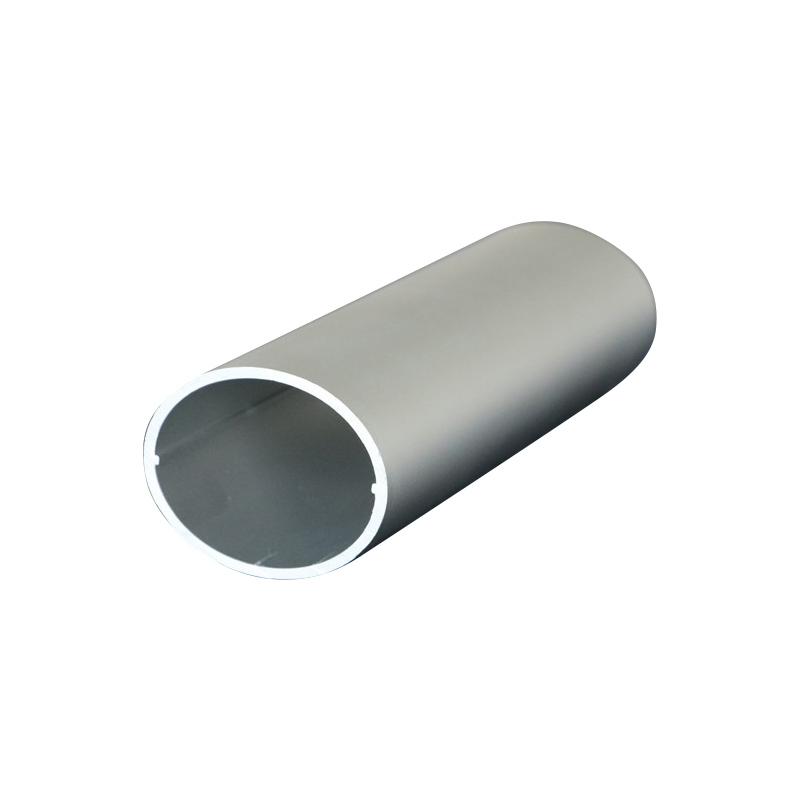

oval aluminum pipe
Oval aluminum pipes are hollow metal tubes with an elliptical or elongated rounded cross-section. Unlike traditional round aluminum tubes, their distinctive shape provides different mounting possibilities, surface contact arrangements, and design options. These characteristics make oval aluminum tubing suitable for industrial components, furniture structures, decorative assemblies, and equipment where conventional circular tubing may not meet the design requirements.
Alumag Aluminum Tech (Taicang) Co., Ltd. supplies aluminum alloy tubes and customized metal products for different manufacturing requirements. The oval aluminum pipe range covers a selection of aluminum alloys, temper conditions, surface treatments, and processing options. Customers can specify the required cross-sectional geometry, wall thickness, length, and finishing requirements according to their project drawings.
An oval aluminum tube may be selected for its appearance, installation configuration, or directional structural properties. However, its mechanical performance depends on the actual alloy, wall thickness, temper, and cross-sectional dimensions. These factors must be evaluated together when selecting a suitable tube for a particular application.
Alumag provides oval aluminum pipes with various material, processing, and finishing options. The following product specifications outline the available ranges and listed manufacturing choices.
Parameter | Specification |
|---|---|
Product Name | Oval Aluminum Pipe |
Out Diameter (mm) | 0.75-1300mm |
Thickness | 0.3-100mm |
Surface | mill finish; color coated; sand blasting; powder coating; oxidized; anodic oxidation; embossed; coated; enameled wire |
Process | Extruded, seamless, forged |
Temper | O,H111,H112,H114,H12,H14,,H16,H18,H22,H24,H26,H321,H32,H34,T651,T4,T6 |
Material Grades | 2014, 2017, 2024, 3003, 5056, 5083, 6005, 6061, 6063, 6082, 7075, or other materials according to customer requirements |
Additional Temper Options | T3-T9 or other |
Additional Surface Treatment | Mill finish, anodizing, powder coating, painting, brushed, sand blasting |
Additional Diameter Range | Φ3.2-Φ220mm |
Minimum Thickness | 0.3mm |
Maximum Section Size | About 250 × 100mm |
Deep Processing | Cold drawing, CNC machining, precise cutting, sawing, drilling, milling, punching, bending, tapping, assembly |
Packaging | PE film, poly bag, pearl cotton foam, wooden case, or according to customer requirements |
Customization | OEM and ODM services |
The dimensions above represent published product and manufacturing specifications. For oval tubing, the major axis and minor axis provide a more useful description of the cross-section than a single diameter measurement. The required dimensions and their tolerances should be clearly stated in technical drawings.
Different materials, tempers, processes, and section sizes may have different manufacturing constraints. The required combination should be assessed according to the intended product configuration.
Aluminum alloys have relatively low density compared with steel and copper. This makes oval aluminum tubing useful in equipment and assemblies where component weight is an important design consideration. Lower weight can simplify handling and may reduce the load placed on supporting structures.
The strength of an oval aluminum pipe depends on its selected alloy, temper, dimensions, and loading conditions. Lightweight construction should therefore be considered alongside the required mechanical performance.
The oval shape provides two different external dimensions, allowing designers to control the profile's width and height independently. This can be useful in applications where the tube must fit within a restricted space or align with a particular mounting surface.
Compared with a round pipe, an oval section has different bending characteristics along its major and minor axes. Its suitability depends on the direction of the applied load and the complete sectional geometry.
The product range includes aluminum alloy grades from several series. These alloys offer different combinations of strength, corrosion resistance, formability, and processing characteristics.
Material selection can be based on installation conditions, design requirements, and the intended manufacturing process. Not every alloy provides the same mechanical properties or finishing results.
Oval aluminum pipes can be specified with surface finishes such as mill finish, anodizing, powder coating, and sand blasting. Different treatments provide different visual appearances and levels of surface protection.
Surface finish selection should account for the application environment, appearance requirements, and subsequent fabrication processes.
Alumag offers OEM and ODM services for aluminum products manufactured according to customer requirements. Oval tubing can be incorporated into projects that require defined lengths, mounting features, surface finishes, or additional machining operations.
Technical drawings are particularly useful for non-standard cross-sections and applications where accurate component fit is important.
The properties of oval aluminum pipes depend on both the chemical composition of the selected alloy and its temper condition. Different aluminum grades are suited to different fabrication requirements and operating environments.
Alumag lists material grades including 2014, 2017, 2024, 3003, 5056, 5083, 6005, 6061, 6063, 6082, and 7075. Additional materials may be considered according to customer requirements.
Aluminum Alloy | General Material Characteristics |
|---|---|
2014 | High-strength aluminum alloy used in suitable structural and engineering applications |
2017 | Heat-treatable alloy with mechanical properties suited to selected engineering components |
2024 | High-strength alloy often used where mechanical performance is important |
3003 | Good formability and corrosion resistance for suitable fabricated products |
5056 | Magnesium-containing alloy with useful corrosion resistance and mechanical properties |
5083 | Good corrosion resistance, including in many marine environments |
6005 | Heat-treatable alloy commonly considered for extruded structural sections |
6061 | Versatile alloy with a balance of strength, machinability, and corrosion resistance |
6063 | Frequently used for extrusion profiles requiring good surface appearance |
6082 | Structural alloy with relatively high strength within the 6000 series |
7075 | High-strength alloy used for demanding mechanical applications |
The chosen grade should match the product's mechanical, environmental, and manufacturing requirements. The availability of a particular alloy in an oval tube configuration depends on the selected process and required dimensions.
Aluminum temper designations identify material conditions resulting from mechanical processing or heat treatment. Temper selection affects properties such as strength, hardness, formability, and suitability for further fabrication.
O temper generally refers to an annealed condition. H-series tempers describe strain-hardened conditions, including certain stabilized or partially annealed states. T-series tempers describe thermally treated conditions.
The product specification includes O, H111, H112, H114, H12, H14, H16, H18, H22, H24, H26, H321, H32, H34, T651, T4, and T6. The technical product range also lists T3-T9 or other temper conditions.
The applicable temper depends on the alloy and product form. Buyers should specify the required alloy-temper combination rather than selecting the temper designation independently.
Aluminum tubing can be manufactured using different processes depending on the product geometry, material, and required properties. Alumag lists extruded, seamless, and forged processing options within its product specifications.
Extrusion is a common manufacturing method for producing aluminum profiles with consistent cross-sectional shapes. During this process, aluminum material is forced through a die to form the required section.
For an oval aluminum pipe, the die geometry determines the hollow profile's basic shape. Extrusion can be suitable for producing lengths of tubing with a defined major axis, minor axis, and wall thickness.
The achievable dimensions depend on the alloy, extrusion equipment, tooling, and profile complexity.
Seamless aluminum tubes are produced without a longitudinal welded seam. Such tubing may be selected when the application requires a continuous tube wall and suitable mechanical properties.
The manufacturing route can vary with the required tube size and material grade. Seamless construction should not be assumed to provide a particular pressure rating without appropriate design calculations and testing.
Forging uses compressive force to shape metal under controlled processing conditions. It is commonly associated with components requiring particular structural characteristics.
For oval aluminum pipe orders, the appropriate manufacturing route must match the required hollow geometry. The listing of forging among the available processes does not mean every oval tube is manufactured by forging.
Cold drawing is another process included in Alumag's aluminum processing range. Drawing can be used to modify dimensions and improve dimensional consistency in suitable tubing products.
Whether drawing is appropriate depends on the alloy, initial tube configuration, desired final dimensions, and manufacturing sequence.
Surface treatment influences the appearance, corrosion behavior, and maintenance requirements of aluminum tubing. Alumag lists several finish options for its aluminum product range.
Mill finish aluminum retains the surface condition produced through the manufacturing process, without an additional decorative coating. It is suitable for applications where a natural metallic appearance is acceptable or where further processing will be carried out.
The appearance of mill finish tubing may vary according to alloy, extrusion conditions, and handling.
Anodizing is an electrochemical process that increases the thickness of the natural oxide layer on aluminum. It can improve surface durability and provide additional protection in suitable environments.
Anodized oval aluminum pipes may be selected for visible structural or decorative components. The final finish depends on alloy composition, surface preparation, and anodizing requirements.
Powder coating applies a protective coating to the aluminum surface. It can provide a range of colors and finishes for applications where appearance and environmental protection are important.
Coating selection should consider exposure conditions, adhesion requirements, and the intended operating environment.
Sand blasting and brushing modify the surface texture of aluminum. These treatments may be used to achieve a particular visual effect or prepare a surface for subsequent processing.
The selected treatment should be compatible with the required surface quality and wall thickness.
The listed surface options also include color coated, oxidized, embossed, coated, and enameled wire. These designations cover different product forms and finishing requirements within the broader aluminum product range.
For oval aluminum tubing, the applicable finish should be selected according to the material, tube geometry, and intended use.
Alumag provides additional processing options for aluminum products, allowing components to be prepared for further manufacturing or assembly.
Cutting and sawing operations can be used to produce specified tube lengths. The required cut length should be defined together with any relevant tolerance or end-face requirements.
For components that will be assembled into frames or fittings, cut accuracy can influence installation and alignment.
CNC machining can be used to create features that are difficult to achieve through the primary tube-forming process. Depending on the design, these operations may include machined surfaces, holes, slots, and other mounting details.
Accurate drawings help define the position and dimensions of functional features.
Drilling and milling can prepare oval tubing for mechanical connections and component installation. Tapping may be used where threaded features are required and the material thickness and design permit them.
Machining parameters should account for the alloy, tube wall thickness, and required feature accuracy.
Punching and bending are included in the available secondary processing range. Their suitability depends on the geometry, material temper, wall thickness, and required deformation.
Oval tubing may require specialized support or tooling during bending to reduce flattening, wrinkling, or unwanted cross-sectional distortion.
Assembly operations may help integrate processed aluminum components into larger products. Buyers should provide the relevant assembly drawings, connection details, and component requirements when requesting this service.
Oval aluminum pipes can be used in different industries when their shape, material, and mechanical properties match the intended design.
Oval aluminum tubing can be incorporated into furniture frames, handles, supports, and decorative structures. Its elongated shape provides an alternative appearance to round and rectangular tubing.
Surface finishing options can help coordinate the aluminum components with surrounding materials.
Aluminum tubing is used in various automotive applications where weight, dimensions, and mechanical performance are important considerations.
Oval sections may be evaluated for suitable framework, mounting, or support applications. Parts used in safety-critical or pressure-containing systems require additional engineering validation.
Industrial machinery may incorporate oval aluminum tubes as supporting elements, equipment features, or protective components.
The selected profile should be assessed for mechanical loading, vibration, connection methods, and environmental exposure.
Oval aluminum pipes can be used for architectural trim, interior fixtures, rail-type features, and decorative assemblies.
Their surface finishes allow designers to select different metallic or coated appearances. Structural applications require appropriate verification of strength and attachment methods.
Oval tubing may be incorporated into display stands, exhibition structures, and retail fixtures where appearance and manageable weight are important.
Its geometry can support particular design layouts, while additional machining allows connection features to be added.
Choosing a suitable oval aluminum pipe involves more than selecting its external appearance. Buyers should evaluate the cross-sectional dimensions, material, temper, manufacturing method, and conditions under which the finished component will operate.
An oval tube normally requires two external dimensions to describe its cross-section. These are the major axis and minor axis.
Providing both measurements helps prevent confusion when preparing drawings or comparing oval sections with round tubing.
Wall thickness affects the pipe's weight, stiffness, forming behavior, and resistance to local deformation.
A thicker wall may be necessary for certain applications, but it also increases material use and component weight. The correct thickness depends on the design requirements.
For supporting components, buyers should identify the expected loading direction, mounting arrangement, and operational conditions.
Because an oval section has different geometric properties along its two principal axes, its orientation can affect bending stiffness and structural behavior.
Different alloy and temper combinations provide different mechanical characteristics. Material selection should consider corrosion exposure, fabrication requirements, and any specified engineering standards.
Where a particular grade is required, it should be clearly identified in the purchasing specification.
The operating environment influences the appropriate surface treatment. Indoor decorative applications, industrial equipment, and exposed installations may require different finishes.
Buyers should also consider whether the tube will undergo welding, bending, machining, or other fabrication after finishing.
Critical dimensions should be identified on the drawing, including outer dimensions, wall thickness, length, straightness, and any mounting features.
Tolerance requirements should reflect the application and the relevant manufacturing method rather than being unnecessarily restrictive.
Product consistency is important when oval aluminum pipes are used in assembled products. Dimensional accuracy, material condition, surface quality, and handling requirements should be considered during purchasing and inspection.
Verification may include checking the material grade, major and minor axes, wall thickness, length, and critical machined features.
The applicable acceptance criteria should be based on the customer's technical drawing and agreed product specifications.
The surface should be evaluated according to the selected finish and intended application. Visible scratches, handling damage, coating defects, or other surface irregularities may affect the appearance or use of the finished pipe.
Different finishing methods require different acceptance criteria.
Alumag lists several packaging options for aluminum products:
PE film
Poly bag
Pearl cotton foam
Wooden case
Packaging according to customer requirements
Suitable packaging helps protect the tubes during handling and transportation. The choice depends on profile dimensions, surface finish, quantity, and shipment conditions.
Alumag Aluminum Tech (Taicang) Co., Ltd. is a make-to-order aluminum product supplier focusing on customized manufacturing requirements. The company offers aluminum tubes, extrusion products, and additional metal processing services for customers with specific product drawings.
The listed material range includes several aluminum alloy series, allowing buyers to discuss material selection according to their project requirements.
Alumag offers OEM and ODM services for customers requiring custom dimensions, product geometry, processing, or finishing options. Drawings and product specifications help define the requested configuration.
Available deep-processing capabilities include cold drawing, CNC machining, precise cutting, sawing, drilling, milling, punching, bending, tapping, and assembly. Appropriate processes are selected according to the product design.
Beyond oval tubing, Alumag provides additional aluminum products and manufacturing solutions. Buyers can learn more about the company's product range through the Alumag official website or explore the available aluminum tube products for related tube configurations and applications.
Oval aluminum pipe has an elongated cross-section with two different principal dimensions, while round aluminum pipe has a circular cross-section with a constant outside diameter. Their shapes affect installation, bending behavior, and available mounting arrangements. The appropriate design depends on the intended application.
Many aluminum alloys can be welded using suitable procedures, but weldability varies by alloy and temper. Welding may change the mechanical properties near the joint, especially in heat-treatable alloys. The welding method and joint design should be selected according to the specified material.
Oval aluminum pipes may be used outdoors when the selected alloy and surface treatment are appropriate for the exposure conditions. Moisture, salt, chemicals, and contact with other metals should be considered. Anodizing or suitable protective coatings may be beneficial for certain environments.
Oval tubing can be bent using appropriate techniques, although the process is more complex than bending some round tubes. Tooling, bend radius, wall thickness, and material temper affect the risk of flattening or wrinkling. Forming trials may be necessary for demanding geometries.
An oval aluminum tube is normally described using its major axis, minor axis, and wall thickness. Tube length is specified separately. For accurate production, drawings should also define the cross-sectional shape, corner or transition geometry where relevant, and dimensional tolerances.
Yes. Oval aluminum pipes can be connected using suitable brackets, clamps, bolts, inserts, or other mechanical joining methods. The connection must accommodate the tube's geometry and wall thickness. Local reinforcement may be necessary when significant loads are transferred through the joint.
The terms are sometimes used interchangeably, but their cross-sectional geometry may differ. A true ellipse follows a continuous elliptical curve, while some commercial oval tubes use straight sections connected by rounded ends. Buyers should provide a drawing when the exact shape is important.
Yes. Different aluminum alloys can be manufactured into similar oval tube dimensions when the selected manufacturing process supports the material and geometry. However, their mechanical properties, formability, and production requirements may differ.
An OEM inquiry should include the required material, major and minor axes, wall thickness, tube length, temper, surface finish, quantity, and technical drawings. Any machining, bending, assembly, packaging, or inspection requirements should also be identified.
Anodized aluminum tubing can generally be cleaned with a soft cloth, water, and a suitable mild detergent. Abrasive tools and aggressive chemical cleaners should be avoided because they may damage the finish. Maintenance requirements also depend on the installation environment.
