Aluminum Customize Profile
An aluminum folding canoe frame provides structural support for a folding canoe assembly. The frame supports the intended hull geometry and connects individual structural members through joints, brackets, or other suitable fittings. For a folding design, the material must be selected with consideration for weight, structural rigidity, repeated assembly, and exposure to moisture.
Aluminum extrusion is a practical manufacturing method for producing structural profiles with defined cross-sectional dimensions. Different profile geometries can accommodate mounting features, fastening points, and connection interfaces. The completed frame design determines how the individual parts are assembled and how loads are distributed throughout the structure.
Alumag Aluminum Tech (Taicang) Co., Ltd. supplies customized aluminum products for industrial and structural applications. Its product listing includes 6063 aluminum extrusion, 4080 T-track industrial framing profiles, and T5/T6 temper options.
For folding canoe frame projects, buyers can provide engineering drawings to define the required frame members, dimensions, connection features, and surface finishes. The appropriate extrusion profile should be selected according to the actual canoe design rather than relying on general industrial framing dimensions alone.
Alumag lists the following industrial aluminium profile specifications for this product.
Parameter | Specification |
|---|---|
Product Category | Industrial Aluminium Profile |
Material | 6063 Aluminum Extrusion 4080 T Track Industrial Aluminium Profile Framing System |
Temper | T5,T6 |
Surface Treatment | Mill finish, anodized, powder coated, electrophoresis, sand blasting, wood grain painting, matted, polishing bright etc. |
Color Available | Silver, Bronze, champagne, Matte, Natural for anodizing, RAL for powder coating |
Packing Details | Normally protected film inside and shrink film outside |
Samples Time | 10-15day after receive the mold fee |
Delivery | Normally 20 days after deposit |
Production Capacity | 1500MT/Month |
MOQ | 500kg |
Product Model | Aluminum Customize Profile |
The listed 4080 T-track specification refers to an industrial aluminum framing profile. Its dimensions and T-slot geometry should be evaluated against the actual folding canoe frame drawings. The information does not independently establish the dimensions or load capacity of a complete canoe frame.
The aluminum material grade, temper, profile geometry, and finishing requirements should be defined together when preparing an order. Related aluminum grades and material categories can also be explored through Alumag's Aluminum Material (ASTM) product range.
Aluminum has a lower density than steel, making it a useful material for portable structures where component weight matters. In a folding canoe frame, reducing unnecessary weight can make individual members easier to handle during assembly, transport, and storage.
The total frame weight depends on the number of components, profile dimensions, wall thickness, and connection hardware. Material weight must be balanced with the rigidity and strength required by the complete canoe design.
6063 is an aluminum-magnesium-silicon alloy commonly used for extruded profiles. It offers useful extrudability, corrosion resistance, and surface finishing characteristics.
For folding canoe frame components, the suitability of 6063 depends on the profile geometry, temper, structural loads, and operating conditions. The material should be assessed as part of the complete frame system rather than as an isolated component.
The product lists T5 and T6 temper conditions. Both are heat-treated conditions used with suitable aluminum alloys, but they involve different processing routes and mechanical property requirements.
The selected temper influences the profile's strength, formability, and behavior during fabrication. Frame components that require bending, machining, or mechanical fastening should be evaluated according to the specified material condition.
Extrusion allows aluminum sections to incorporate channels, cavities, ribs, and other cross-sectional features. Such features can be useful for positioning components or connecting structural members.
A folding canoe frame may require profile designs different from standard industrial T-slot sections. Cross-sectional geometry should therefore be defined by the frame drawings and the intended connection method.
Alumag lists mill finish, anodizing, powder coating, electrophoresis, sand blasting, wood grain painting, matted finishes, and polishing bright among its surface treatment options.
These finishes provide different appearances and surface characteristics. For canoe applications, the selected finish should be appropriate for moisture exposure, handling, abrasion, and maintenance requirements.
The performance of a folding canoe frame depends on how individual aluminum members are positioned and connected. Profile selection alone cannot determine the rigidity, durability, or safety of the assembled structure.
Longitudinal members extend along the canoe and help define its overall structure. Their dimensions, spacing, and connection points influence the shape and stiffness of the assembly.
Depending on the design, these members may be produced using suitable aluminum tubes or other extruded sections. The selected geometry must accommodate the intended loads and mounting arrangements.
Transverse supports help maintain the designed cross-sectional shape of a canoe frame. They may also provide connection points for longitudinal members and other components.
The number, dimensions, and arrangement of these supports depend on the canoe design. Their connection details should be specified through appropriate drawings.
Folding frames use detachable, articulated, or otherwise movable connections to support assembly and disassembly.
Common engineering considerations include joint alignment, pin or fastener fit, repeated movement, and resistance to loosening. The connection method must be compatible with the selected aluminum section.
Proper alignment helps individual frame members fit together without unnecessary interference or deformation.
The finished component dimensions should account for machining tolerances, connector clearances, and any surface treatment that affects mating features.
The product specification identifies a 6063 aluminum extrusion 4080 T-track industrial aluminium profile framing system. T-track profiles are commonly used in modular industrial assemblies because their longitudinal slots accommodate compatible fasteners and connection hardware.
A T-track profile contains channels designed to receive suitable sliding nuts, brackets, or other mechanical connectors.
The arrangement of the channels influences how components can be positioned and attached. The exact slot dimensions should be checked against the specified hardware.
Industrial T-slot framing can be assembled using compatible mechanical connections. This makes it useful for equipment frames, positioning structures, and modular industrial installations.
For folding canoe applications, the feasibility of using a T-slot profile depends on the hull configuration, frame dimensions, and connection requirements. A profile suitable for a stationary industrial frame is not automatically suitable for repeated folding or marine use.
The strength of a T-track assembly depends on the profile material, slot geometry, fasteners, bracket design, and tightening conditions.
Connections must be evaluated for their intended loads, including forces that may occur during handling, assembly, and operation.
A customized canoe frame may require round tubes, shaped extrusions, or other dedicated members instead of standard 4080 T-track profiles.
The appropriate section should be selected according to the completed design, weight requirements, joint geometry, and expected service conditions.
Aluminum extrusion forms metal into a continuous profile by forcing heated material through a shaped die. The resulting cross-section is determined by the die geometry and can be produced in lengths appropriate for subsequent processing.
A well-defined cross-section is important for manufacturing consistency. Drawings should identify external dimensions, wall thickness, internal cavities, and any functional channels or mounting features.
Complex cross-sections may require specialized tooling and additional consideration of extrusion feasibility.
Aluminum extrusions can be cut to the lengths required for a frame or other assembly.
Cut quality is important where members connect through closely fitted joints. Burrs, angled end faces, or inaccurate lengths may interfere with installation.
Certain frame components require holes, slots, or other connection features after extrusion.
Machining requirements should be shown on the technical drawings, including the location and dimensions of critical features. Finished surfaces and connection clearances should also be considered.
Relevant dimensional requirements may include cross-sectional width, height, wall thickness, length, straightness, and the location of mounting features.
The applicable tolerances should reflect the intended assembly and the manufacturing process.
Surface finishing is important for aluminum frame components exposed to handling, moisture, or visible installation conditions.
Different surface treatments provide different appearances and performance characteristics.
Mill finish aluminum retains the surface condition resulting from manufacturing without an additional decorative coating.
It may be suitable for components where a natural aluminum appearance is acceptable. Surface appearance can vary according to processing and handling.
Anodizing forms a controlled oxide layer on the aluminum surface. It can improve surface durability and provide additional corrosion protection under suitable conditions.
For folding canoe frame components, the anodizing specification should account for the intended service environment and expected handling conditions.
Powder coating applies a separate coating to the aluminum surface. It can provide color and protective properties when the coating system is selected for the intended environment.
Alumag lists RAL color options for powder-coated profiles.
Electrophoresis, sand blasting, wood grain painting, matted finishing, and polishing bright are also included in the stated surface treatment options.
These processes serve different decorative or functional purposes. The selected method should be compatible with the product geometry and intended application.
The stated anodizing color options include Silver, Bronze, champagne, Matte, and Natural. RAL colors are listed for powder coating.
The desired color and finish should be identified during the specification stage. Appearance requirements may be established using samples or agreed finishing criteria.
Custom aluminum profiles can be incorporated into folding canoe projects and related portable structural assemblies when the material and design meet the required operating conditions.
Aluminum sections may be used as longitudinal or transverse frame components in suitable folding canoe designs.
The selection depends on the required frame geometry, joint arrangement, mechanical loading, and compatibility with the hull.
Detachable structures require components that can be assembled and disassembled using defined connections.
Aluminum profiles may provide a lightweight material option, while the joint design controls how the structure is secured and released.
The same general aluminum extrusion manufacturing principles can be applied to portable equipment frames and modular supporting structures.
These applications may use different profile sections and connection methods, depending on their loading requirements.
The listed 4080 T-track profile is also associated with industrial framing applications.
Such profiles may be used in compatible equipment frames, fixtures, and modular assemblies where their slot geometry and mechanical properties meet the design requirements.
The correct aluminum frame design depends on the complete canoe assembly, not simply the material grade or profile dimensions.
Frame drawings should identify the required length, width, support arrangement, and connection locations.
These dimensions determine how individual aluminum components must fit together.
The expected loads and operating conditions influence member geometry and material selection.
Design evaluation should consider bending, compression, joint behavior, local deformation, and the interaction between the frame and hull.
The listed product uses 6063 aluminum extrusion with T5 or T6 temper options.
The selected condition should be evaluated against the required mechanical properties and any subsequent fabrication operations.
Connections intended for repeated use should allow reliable assembly without excessive wear or unwanted looseness.
Critical mating features, fastening details, and allowable movement should be defined in the design.
Canoe frames may be exposed to freshwater, rain, humidity, or other environmental conditions.
Aluminum offers useful corrosion resistance, but connection hardware, coatings, and contact with dissimilar metals also affect long-term performance.
Technical drawings should identify critical dimensions and acceptance criteria.
For equipment used on water, component inspection and validation of the complete frame are important parts of the engineering process.
Alumag specializes in make-to-order aluminum products. Customers can submit project-specific drawings and dimensions to define the required aluminum frame components.
The required aluminum cross-section should be selected according to the frame design.
Drawings should identify the profile shape, overall dimensions, wall thickness, and any special connection features.
Connection requirements should include hole positions, mounting interfaces, and any clearances necessary for assembly.
Components intended to move or detach should be designed with their repeated-use conditions in mind.
Buyers can specify suitable surface treatments from the listed options, including anodizing and powder coating.
The surface finish should correspond to the intended environment and appearance requirements.
Required Information | Details to Provide |
|---|---|
Product Drawings | Frame member dimensions and cross-sections |
Material | 6063 aluminum extrusion |
Temper | T5 or T6 |
Profile Design | Required geometry and connection features |
Surface Treatment | Selected finish and color |
Assembly Details | Joint positions and fastening requirements |
Order Quantity | Required production volume |
Application | Intended canoe frame configuration and operating conditions |
Dimensional accuracy and surface quality are important when aluminum members must fit together in a frame assembly.
Inspection requirements should reflect the intended application, product drawings, and agreed purchasing criteria.
Relevant checks may include overall dimensions, wall thickness, length, straightness, and connection feature locations.
For assembly components, the fit between mating parts may require additional attention.
The finished aluminum surface should be assessed for damage that may affect appearance or function.
Contact surfaces and moving joints should receive appropriate consideration because repeated assembly can create localized wear.
The stated packaging arrangement is protected film inside and shrink film outside.
Protective packaging can help reduce surface contact damage during handling and transportation. Packaging requirements should also consider component length, quantity, and finished appearance.
Alumag lists a sample time of 10–15 days after receipt of the mold fee and a normal delivery period of 20 days after deposit.
For custom extrusion projects, tooling and sample arrangements should correspond to the requested profile geometry.

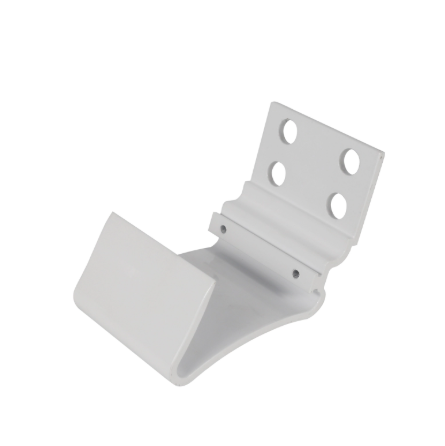

Alumag Aluminum Tech (Taicang) Co., Ltd. supplies make-to-order aluminum products for customers with defined manufacturing requirements.
The product lists 6063 aluminum extrusion with T5 and T6 temper options, allowing buyers to specify a material condition suitable for the intended component.
Available finishing processes include mill finish, anodizing, powder coating, electrophoresis, sand blasting, wood grain painting, matted finishing, and polishing bright.
The make-to-order approach allows buyers to provide drawings and discuss custom profile geometry, dimensions, and assembly requirements.
Commercial Item | Details |
|---|---|
Minimum Order Quantity | 500kg |
Production Capacity | 1500MT/Month |
Sample Time | 10-15 days after receiving the mold fee |
Delivery | Normally 20 days after deposit |
Packaging | Protected film inside and shrink film outside |
These details provide a starting point for planning custom aluminum profile procurement.
6063 aluminum can be considered for certain frame components when its mechanical properties and the selected profile geometry are suitable for the intended loads.
The complete design must account for joint strength, frame rigidity, repeated assembly, and operating conditions. Material selection alone does not establish canoe safety.
T5 and T6 are different heat-treatment conditions.
T5 generally involves cooling from an elevated-temperature shaping process followed by artificial aging. T6 involves solution heat treatment followed by artificial aging. Their resulting properties should be evaluated according to the applicable material specification.
Aluminum can be used in marine environments when the selected alloy, protective finish, and component design are appropriate.
Saltwater exposure can increase corrosion risks, particularly around joints and dissimilar metal connections. Cleaning, inspection, drainage, and suitable corrosion protection should be considered.
T-slot profiles can accommodate compatible connection hardware, but they are not automatically suitable for folding canoe joints.
Repeated movement, vibration, mechanical loading, and resistance to loosening must be evaluated. Dedicated joint components may be necessary for a folding structure.
Aluminum profiles can sometimes be bent after surface treatment, but anodized coatings may crack or become damaged during deformation.
Where bending is required, it is often preferable to complete forming before anodizing. The appropriate sequence depends on the alloy, temper, geometry, and bend radius.
Galvanic corrosion can occur when dissimilar metals are electrically connected in the presence of an electrolyte.
Suitable isolation materials, compatible fasteners, protective finishes, and drainage arrangements may help reduce the risk. The appropriate approach depends on the actual joint and environment.
The total weight depends on the aluminum alloy, component dimensions, wall thickness, number of members, and connection hardware.
The complete assembly may also include parts made from other materials. Weight estimates should be based on the actual bill of materials and drawings.
Inspection should include visible cracks, permanent deformation, damaged connections, loose fasteners, corrosion, and excessive joint movement.
All components should fit and secure as intended. The completed canoe should be checked according to its design and applicable safety requirements before use on water.
Yes. Drawings can be used to define the required extrusion shape, dimensions, and connection features.
A complete inquiry should include the intended material, temper, surface treatment, quantity, and critical tolerances so that manufacturing requirements can be assessed.
The listed minimum order quantity is 500kg.
The published sample arrangement is 10–15 days after receipt of the mold fee, while normal delivery is stated as 20 days after deposit.
