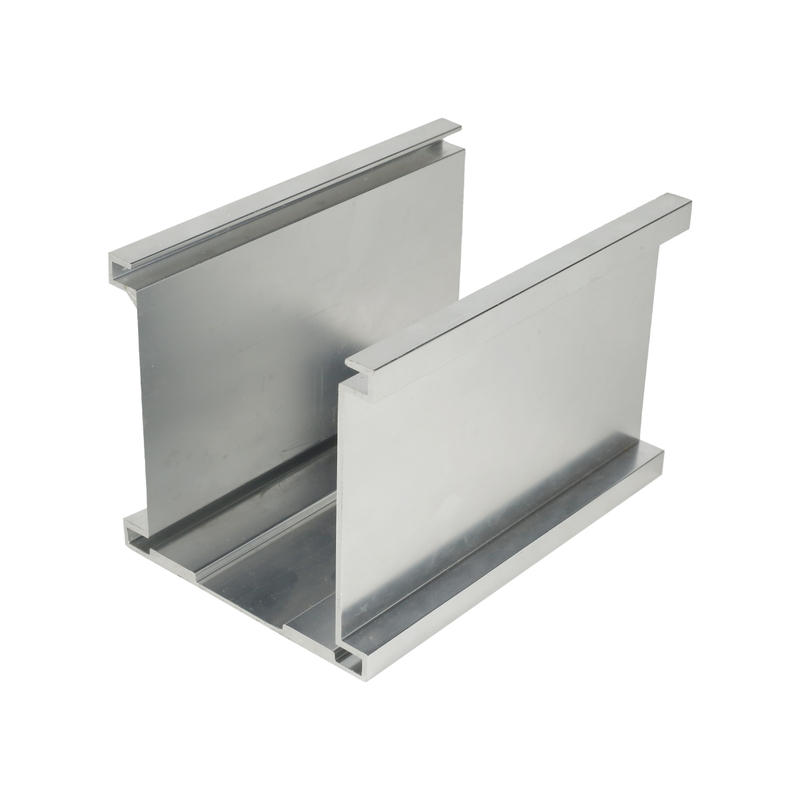

Aluminum U channel profiles are extruded aluminum sections with a three-sided, open-channel design. They are commonly used for framing, edge protection, material guidance, and component support in industrial and architectural projects.
Alumag supplies aluminum alloy U channel profiles with anodized surface treatment. The profiles can be customized in size, color, and cross-sectional dimensions according to buyer requirements. Their straightforward geometry makes them suitable for projects requiring an open channel for holding, positioning, or protecting components.
U-shaped profiles typically have two parallel side walls connected by a base. H-shaped sections have a different cross-sectional structure and may be considered for applications requiring opposing channels or a central web. Selecting the appropriate extrusion shape depends on the installation method, supported material, and required dimensions.
Parameter | Specification |
|---|---|
Product Name | U Channel Aluminium Profiles |
Type | Aluminum U Channel Profiles |
Material | Aluminum Alloy |
Profile Shape | U Channel |
Surface Treatment | Anodization |
Customization | Customized Size, Color, and Other Requirements |
Manufacturing Method | Aluminum Extrusion |
Payment Method | T/T |
Payment Terms | 30% in Advance, 70% Before Shipment |
Custom dimensions, colors, and other specifications can be discussed according to the buyer's project requirements.
Aluminum alloys offer a useful combination of low weight and structural performance. Compared with steel profiles of similar volume, aluminum sections are lighter, which can simplify handling, installation, and transportation.
The suitability of each profile for supporting loads depends on its alloy, wall thickness, cross-sectional geometry, and installation conditions.
The open-channel structure allows U channel aluminium profiles to hold panel edges, guide components, or serve as protective trim. The three-sided shape provides accessible mounting space and can be incorporated into frames, enclosures, and assembly systems.
For proper fitting, the internal channel width should match the material or component being installed, with suitable clearance where necessary.
Anodization creates a controlled oxide layer on the aluminum surface. This treatment improves surface durability and provides additional protection against corrosion under suitable service conditions.
Anodized aluminium profiles are often selected for applications where appearance, surface protection, and routine cleaning are important.
Alumag provides customized aluminum U channel profiles according to buyer requirements, including size, color, and other relevant specifications.
Customization allows buyers to select channel dimensions that correspond to their mounting arrangements, supported materials, and product designs instead of relying entirely on standard profiles.
Anodizing is an electrochemical surface treatment that increases the thickness of the natural oxide layer on aluminum. The resulting finish can improve surface protection and support a consistent appearance when the process is appropriately controlled.
For U channel aluminium profiles used in visible assemblies, anodization also provides a practical surface finish that complements the natural metallic appearance of aluminum.
The final appearance and performance depend on the selected aluminum alloy, surface preparation, anodizing process, and intended environment.
Improved resistance to surface corrosion in suitable environments.
Greater surface durability compared with untreated aluminum under many service conditions.
A clean metallic finish for visible installations.
Color customization to meet design and project requirements.
Easier routine cleaning with appropriate maintenance methods.
Anodized surfaces should be cleaned with suitable non-abrasive products. Strong alkaline or acidic cleaning agents may damage the finish.
Different installations require different channel widths, heights, wall thicknesses, and surface finishes. Alumag offers customized aluminium profiles to accommodate individual project requirements.
The dimensions of a U channel determine how it fits surrounding parts and whether it provides sufficient clearance or support.
Buyers can specify the required external width, internal opening, side-wall height, wall thickness, and profile length. Dimensional requirements should be defined through technical drawings wherever possible.
Anodized aluminium profiles can be specified with different color requirements for architectural details, decorative components, or industrial assemblies.
Color selection should account for the aluminum alloy, anodizing process, appearance requirements, and consistency across production batches.
Some projects require more than a basic open-channel shape. Profile geometry may need to account for panel positioning, mounting clearance, component engagement, or other functional considerations.
Custom extrusion requirements can be reviewed using technical drawings that define the cross-section and intended application. Projects requiring H-channel or alternative profiles should specify the required geometry separately.
To prepare an accurate quotation, buyers should provide the following details:
Cross-sectional drawings or dimensional specifications.
Required profile length and order quantity.
Preferred aluminum alloy, where applicable.
Anodized surface finish and color requirements.
Intended application and installation conditions.
Any critical tolerances or functional requirements.
Aluminum U channel extrusions are used in various projects where components require an open support channel, a protective edge, or a lightweight framing element.
U channel aluminium profiles can be used around panel edges, decorative surfaces, and interior fittings. They provide a defined border while helping position or protect compatible materials.
Their anodized finish also makes them suitable for projects that require a visible metallic appearance.
Aluminum U channels can serve as edge sections, guide elements, and supporting members in equipment housings and industrial assemblies.
Their relatively low weight and adaptable cross-sectional dimensions make them useful when designing equipment with specific installation constraints.
Custom aluminum channels may be incorporated into shelving, display structures, partition systems, and furniture components.
They can help locate panel edges, create clean transitions between materials, or provide a mounting channel within a larger assembly.
U-shaped aluminum strips are often used to cover or protect exposed edges on compatible panels and boards. Proper channel sizing helps achieve a suitable fit without excessive movement or unnecessary installation force.
Material thickness, dimensional variation, and fastening methods should be considered during selection.
Aluminum channels may also be used in lighting-related assemblies when their dimensions and design are suitable for the intended components.
For LED strip applications, buyers should verify strip width, mounting arrangement, heat dissipation requirements, and the need for diffusers or other accessories. A standard industrial U channel should not be assumed to provide the same functions as a dedicated LED lighting housing.
Selecting the correct aluminum U channel profile starts with understanding the component it must hold, support, or protect. Cross-sectional dimensions, material properties, surface finish, and installation conditions all affect suitability.
The internal channel opening should correspond to the thickness or dimensions of the inserted material. Consider any coating, gasket, adhesive, or installation clearance that may affect the final fit.
Wall thickness influences profile weight, rigidity, and resistance to deformation. Thicker sections are not automatically necessary for every application. The correct design depends on supported loads, span, and installation method.
Indoor decorative applications and industrial installations may have different exposure conditions. Temperature, moisture, chemicals, mechanical contact, and cleaning methods can influence the choice of material and finish.
Tight-fitting assemblies require suitable dimensional control. Buyers should identify critical dimensions and specify their tolerance requirements when submitting drawings.
Dimensions that affect assembly, sliding clearance, or component positioning may require particular attention.
Where the finished channel remains visible, anodized color, surface texture, and acceptable cosmetic variation should be considered. Reference samples or agreed finish criteria can help align expectations for production orders.
Aluminum extrusion is a manufacturing process in which heated aluminum material is forced through a shaped die to form a continuous profile. The resulting cross-section follows the die geometry and can be cut to the required length.
For U channel profiles, dimensional consistency is important because the channel opening, side walls, and base must fit the intended assembly.
A well-defined profile drawing helps establish the required channel width, external dimensions, wall thickness, corner geometry, and other functional features.
For customized aluminium extrusions, the manufacturability of the cross-section should be considered alongside the finished part's intended use.
Dimensional checks can include the internal opening, wall thickness, overall width, height, length, and straightness. The applicable checks should reflect the drawing requirements and intended function of the profile.
The finished surface should be evaluated according to agreed appearance and coating requirements. Relevant considerations may include color consistency, visible surface defects, and the specified anodized finish.
Anodized profiles should be handled and packaged to reduce scratching, abrasion, and contact damage during transportation. Packaging arrangements can be discussed according to the profile dimensions and shipment requirements.
Alumag Aluminum Tech (Taicang) Co., Ltd. supplies customized aluminum products for industrial and commercial requirements. Its make-to-order approach supports buyers who need aluminium extrusion profiles based on specific drawings, dimensions, and surface finish preferences.
Buyers can request aluminum U channel profiles with customized dimensions and colors to suit their assemblies. This is useful when standard channel sizes do not provide the desired fit.
The specified combination of aluminum alloy and anodized surface treatment provides a practical basis for applications requiring lightweight metal profiles with a finished surface.
Technical drawings help buyers communicate critical dimensions and functional requirements before ordering. This reduces ambiguity when specifying non-standard profile shapes.
Alumag's stated payment method is T/T, with 30% payable in advance and the remaining 70% payable before shipment. Buyers can discuss order specifications and quotation details with the sales team.
A U channel has an open, three-sided cross-section, while an H channel has two opposing channel areas separated by a connecting web. U channels are commonly used for edge protection and single-sided panel support. H channels may be used to connect or position components on opposite sides, depending on their design.
Yes. Aluminum profiles can generally be drilled or cut using suitable tools. However, these operations expose untreated aluminum at the newly machined surfaces. Where the appearance or protection of these areas matters, completing the necessary machining before anodizing may be preferable.
Anodized aluminum channels can be suitable for certain outdoor applications, depending on the alloy, anodizing specification, and exposure conditions. Coastal environments, chemical exposure, and prolonged moisture contact may require additional consideration.
Yes. Depending on the application, aluminum U channels may be installed with mechanical fasteners, brackets, compatible adhesives, or other joining methods. The chosen connection should account for loads, substrate materials, and service conditions.
A dedicated extrusion die is generally required when the requested cross-section cannot be produced using an existing suitable die. Die requirements and related costs depend on the profile geometry and production arrangements.
The theoretical weight can be estimated by multiplying the profile's cross-sectional area by its length and the density of the selected aluminum alloy.
For a simple U-shaped section, the cross-sectional area can be approximated from the base and side-wall dimensions. Detailed drawings provide a more reliable basis when the section includes radii or additional features.
Anodizing forms an oxide layer from the aluminum surface, while powder coating applies a separate protective coating. Anodizing generally retains a metallic appearance, whereas powder coating provides a wider range of opaque finishes. The appropriate treatment depends on appearance, exposure, and performance requirements.
The stated payment method is T/T, with 30% paid in advance and 70% paid before shipment. Order-specific commercial details can be confirmed during quotation.
