Views: 0 Author: Site Editor Publish Time: 2026-08-07 Origin: Site
Extrusion defects cause severe operational headaches for engineering and manufacturing teams. Dimensional instability and uneven wall thickness lead directly to high scrap rates, assembly failures, and compromised structural integrity in the final product. Achieving uniform wall thickness in closed shapes proves inherently more complex than in solid profiles. The mechanics of porthole dies, unpredictable metal flow dynamics, and thermal distortion introduce significant variables during the extrusion process.
Resolving uneven walls requires a systematic approach. Engineers must combine strict Design for Manufacturing (DFM) adjustments with rigorous die maintenance. Selecting an extrusion partner equipped with advanced process controls is equally critical. This guide provides technical diagnostics to help you identify root causes and implement effective solutions for dimensional variations.
Die Deflection is the Primary Culprit: Tube eccentricity and uneven walls often stem from mandrel shifting under high extrusion pressures.
Adjacent Thickness Ratios Matter: Designing profiles with drastic differences in adjacent wall thicknesses creates flow imbalances, velocity differentials, and uneven cooling distortion.
Surface Finish is Directly Impacted: Uneven wall thickness leads to localized thermal variations, which cause structural surface defects like "sink marks" and uneven anodizing absorption.
Alloy and Speed Dictate Flow: Harder alloys require higher pressures, increasing the risk of tool deflection and requiring precise extrusion speed management.
Vendor Capabilities Define Yield: Evaluating a manufacturer’s die correction protocols, press capacity, and quenching controls is critical to mitigating dimensional risks.
Acceptable dimensional tolerance separates a successful extrusion from a structural failure. Baseline expectations for concentricity and wall uniformity depend heavily on the application. A standard architectural frame tolerates minor deviations, often absorbing slight variations within the assembly joints. A precision aerospace component demands strict adherence to nominal dimensions to ensure aerodynamic stability and load-bearing capacity. Understanding these success criteria helps establish proper quality control parameters before production begins. You must define the maximum allowable deviation for your specific use case, as over-specifying tolerances leads to unnecessary manufacturing hurdles, while under-specifying results in field failures.

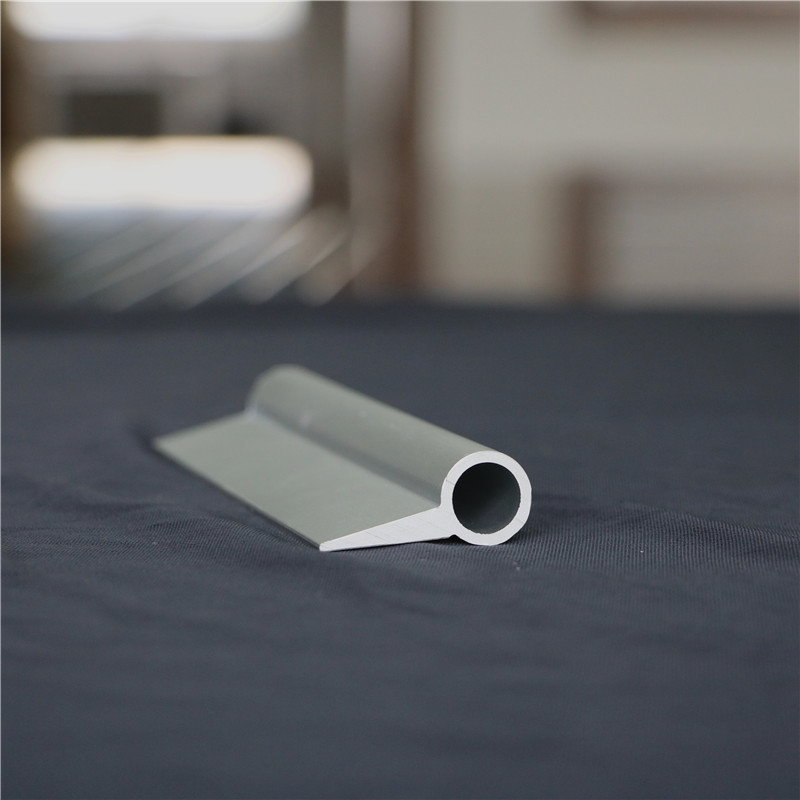

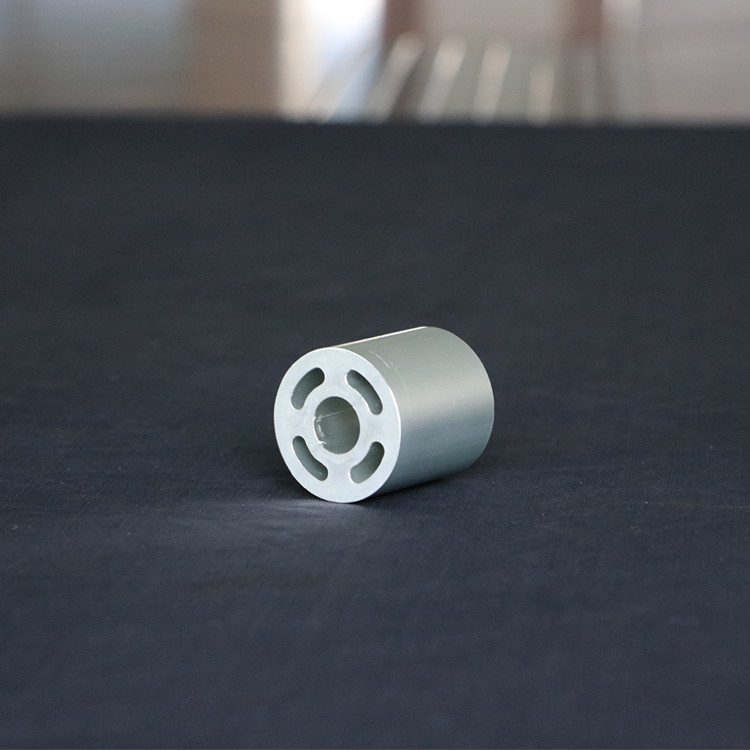

When evaluating an aluminium hollow profile, engineers look at the concentricity of the inner and outer walls. If the center void shifts, the structural integrity of the entire piece compromises. We measure this shift using specialized calipers and laser scanning tools at the run-out table. Establishing a clear baseline for these measurements ensures that both the design team and the extrusion floor operate under the same expectations.
Extruding closed shapes requires specialized tooling known as porthole dies. Solid aluminum billets split into multiple streams as they pass through the die ports. These streams weld back together in the welding chamber around a central mandrel. The mandrel forms the internal void of the shape. Immense pressure acts on this mandrel during extrusion. If the pressure becomes unbalanced, the central mandrel shifts slightly. This shifting causes tube eccentricity, resulting in one side of the wall being thicker than the opposite side.
The physical forces inside the press are staggering. A typical extrusion press applies thousands of tons of force to push the heated billet through the steel die. The mandrel, suspended within the die assembly, must withstand this lateral and forward pressure without bending. Even a deflection of a few thousandths of an inch translates directly into uneven wall thickness. Tooling engineers combat this by designing robust webs to support the mandrel, but the geometry of the profile often limits how thick these support webs can be.
The heated billet enters the container and the ram applies initial pressure.
Aluminum flows into the portholes, splitting the solid mass into separate streams.
The metal enters the welding chamber, flowing around the central mandrel.
Extreme pressure forces the streams to fuse back together in the weld chamber.
The unified metal pushes through the final bearing surface, taking its hollow shape.
The profile exits the die and moves onto the run-out table for quenching.
Aluminum behaves somewhat like a non-Newtonian fluid under extreme pressure and heat. Metal naturally flows faster through wider sections of a die. It flows slower through narrow sections. This inherent behavior creates pressure differentials across the die face. If left unmanaged, these velocity differentials cause the profile to twist, bow, or tear as it exits the press. The center of the billet also flows faster than the edges due to friction against the container walls, adding another layer of complexity to the flow dynamics.
Managing these velocity differentials requires a deep understanding of fluid mechanics applied to solid state metals. When a profile features a thick wall adjacent to a thin wall, the metal wants to rush through the thick section. This creates a pulling effect on the slower-moving thin section. The resulting tension can cause the thin wall to stretch, thin out further, or even rupture. Extrusion engineers spend years mastering the art of balancing these flow rates through subtle modifications to the die geometry.
Tool designers rely on variable bearing lengths to control metal flow. The bearing is the precise surface area where the aluminum takes its final shape. By lengthening the bearing in wider sections, designers artificially restrict the flow. They shorten the bearing in narrow sections to encourage faster flow. Balancing the exit speed across the entire cross-section prevents twisting and ensures uniform wall dimensions.
Think of the bearing as a friction brake for the flowing aluminum. A longer bearing creates more friction, slowing the metal down. A shorter bearing reduces friction, allowing the metal to speed up. The transition between different bearing lengths must be smooth and calculated. Abrupt changes in bearing length can create localized stress points in the die, leading to premature tool failure or surface defects on the extruded profile. Die correctors manually adjust these bearing lengths on the shop floor using files and polishing stones to fine-tune the flow based on initial test runs.
Designing a profile with thin walls directly attached to thick walls invites manufacturing issues. The thinner section extrudes at a different velocity than the thicker mass. This velocity mismatch causes distortion, bowing, and uneven dimensions during the cooling phase. The thicker section retains heat longer, pulling on the thinner section as it cools and shrinks. This thermal contraction differential permanently warps the profile.
Consider a profile with a 2mm wall intersecting a 6mm wall. The 6mm section contains three times the mass of the 2mm section. During the quench phase, the 2mm wall cools almost instantly, locking its crystalline structure in place. The 6mm wall continues to cool slowly, shrinking as it drops in temperature. Because it is physically attached to the already-rigid 2mm wall, the shrinking 6mm wall exerts massive internal stress on the part. This stress manifests as bowing, twisting, or a permanent shift in the wall thickness near the junction.
Thermal dynamics play a massive role in final dimensional stability. Uneven cooling rates across a profile cause the metal to warp or shrink asymmetrically. If the quenching process lacks precision, the profile cools at varying speeds. This uneven thermal contraction permanently alters the wall thickness post-extrusion, rendering the part out of tolerance. Water quenching, while effective for achieving desired mechanical properties, introduces severe thermal shock.
Air quenching offers a gentler alternative but may not cool the metal fast enough to meet the metallurgical requirements of certain alloys. The key lies in applying the cooling medium uniformly across the entire surface area of the profile. If the top of a hollow tube receives more cooling water than the bottom, the top will shrink faster, causing the tube to bow upward. Advanced extrusion facilities use multi-zone quench boxes with adjustable nozzles to tailor the cooling profile to the specific geometry of the part.
Abrupt wall transitions create localized heat retention zones. These zones lead to visible surface defects on the outer surface of the profile. Common issues include "sink marks" opposite internal webs and highly visible weld lines. These thermal variations also produce inconsistent grain structures. Inconsistent grain structures ruin anodizing uniformity, resulting in a blotchy or striped appearance that fails cosmetic inspections.
Weld lines are an unavoidable reality of extruding hollow shapes through porthole dies. However, their visibility can be minimized through proper die design and temperature control. When wall thickness varies wildly, the pressure inside the welding chamber fluctuates. This fluctuation prevents the separate streams of aluminum from fusing completely, resulting in a weak or highly visible weld line. In severe cases, this poor fusion compromises the structural integrity of the profile, causing it to split open under load.
Extrusion tooling undergoes severe stress during its lifecycle. Bearing lengths must be perfectly calculated to balance flow. Over repeated runs, die wear occurs. This phenomenon, known as washout, gradually degrades the bearing surfaces. As the bearings wear unevenly, flow control diminishes, leading directly to wall thickness variations. Regular maintenance and nitriding are required to extend the life of the die.
Washout typically occurs fastest in the areas of the die experiencing the highest flow velocity or the greatest pressure. As the steel wears away, the bearing length effectively shortens, allowing metal to flow even faster through that section. This creates a compounding error. A profile that ran perfectly on its first push may exhibit severe wall thickness variations after 50 pushes if the die is not properly maintained. Tracking die performance and scheduling preventative maintenance prevents these issues from reaching the production floor.
Different aluminum series respond uniquely to extrusion force. A 6000 series alloy flows much easier than a harder 7000 series alloy. Pushing a hard alloy too fast requires immense pressure. This excess pressure exacerbates die shift and flow imbalances. Proper extrusion speed management remains vital to maintaining tool integrity and dimensional accuracy. Operators must constantly monitor ram speed and billet temperature.
Alloy Series | Flow Characteristics | Extrusion Pressure Required | Risk of Mandrel Deflection |
|---|---|---|---|
6060 / 6063 | Excellent flow, highly formable | Low to Moderate | Low (Ideal for complex hollows) |
6061 / 6082 | Good flow, higher strength | Moderate to High | Medium (Requires careful die support) |
7075 | Poor flow, very high strength | Very High | High (Prone to severe tool stress) |
Engineers must apply actionable DFM rules to prevent uneven walls before cutting tooling steel. Addressing geometry during the CAD phase saves significant time and resources. Proper design minimizes flow imbalances and reduces the reliance on complex die corrections. You should always design with the manufacturing process in mind, rather than forcing the process to adapt to an impossible design.
The first step in DFM for extrusions involves simplifying the cross-section. Remove unnecessary internal webs, standardize wall thicknesses wherever possible, and eliminate sharp internal corners. Every feature you add to a profile increases the complexity of the die and the likelihood of flow imbalances. By stripping the design down to its essential structural and functional elements, you drastically improve its manufacturability and dimensional stability.
Keep wall thickness as uniform as possible throughout the entire cross-section. Where variations are absolutely necessary, use generous radii and gradual tapers. Keep thickness ratios below 2:1 between adjacent walls. Gradual transitions stabilize metal flow and reduce localized cooling distortion. Sharp corners create stress concentrations in both the die and the extruded metal.
When transitioning from a thick wall to a thin wall, employ a taper rather than a step. A taper allows the metal flow to adjust gradually, preventing the sudden pressure drops that cause tearing and distortion. Furthermore, applying a radius of at least 0.5mm to all internal and external corners significantly improves metal flow. The aluminum glides around a radiused corner much easier than it forces its way into a sharp 90-degree angle. This simple design change extends die life and improves surface finish.
Designing an aluminum rectangular profile with symmetrical features helps balance extrusion pressure. Symmetrical designs distribute the force evenly across the die face. This balance significantly reduces the likelihood of mandrel shift and subsequent tube eccentricity. When the center of gravity aligns with the center of the die, the metal flows naturally and predictably.
Asymmetrical profiles force the die designer to artificially balance the flow using extreme bearing length variations or by positioning the profile off-center within the die ring. While possible, these workarounds increase the risk of dimensional instability. If your application requires an asymmetrical shape, consider extruding a symmetrical shape and achieving the final geometry through secondary machining. This approach often yields better overall dimensional accuracy, despite the added manufacturing step.
No single maximum wall thickness rule applies universally. Safe limits depend on a multi-variable envelope. This envelope includes your specific alloy choice, the available press capacity, and the profile’s circumscribed circle size (CCD). Consult your manufacturing partner early to determine the safe operating window for your specific geometry. Pushing the limits of the press often results in compromised quality.
The circumscribed circle size is the smallest circle that can completely enclose the profile's cross-section. The CCD determines which press size is required to extrude the part. A large CCD requires a massive press with high tonnage to generate enough pressure to push the metal through the die. If you attempt to extrude a profile with a large CCD on an undersized press, the metal will stall, or the pressure will be insufficient to properly weld the hollow sections together.
Understand the difference between standard commercial tolerances and precision tolerances. Standard tolerances, such as EN 755-9, suit most general applications. Precision tolerances, like EN 12020-2, require tighter controls and often cost more. Specify tighter tolerances only when the application strictly requires them to avoid unnecessary manufacturing hurdles. Over-tolerancing is a common engineering mistake that drives up costs without adding functional value.
Tolerance Standard | Typical Application | Manufacturing Impact |
|---|---|---|
Standard (EN 755-9) | Architectural framing, general construction | High yield, standard die maintenance, lower cost. |
Precision (EN 12020-2) | Aerospace, medical devices, tight assemblies | Requires frequent die correction, higher scrap rates, increased cost. |
Auditing a potential manufacturing partner requires a structured framework. You must assess their ability to hold tight tolerances on a complex hollow aluminum extrusion. Look beyond their marketing materials and examine their actual shop floor controls. A clean facility with documented procedures generally produces better parts than a disorganized shop relying on tribal knowledge.
When walking the shop floor, observe how the operators interact with the press. Are they constantly adjusting parameters on the fly, or is the process stable and automated? Check the scrap bins. A high volume of twisted or bowed profiles indicates poor process control. Ask to see their quality control lab and verify that their measurement equipment is calibrated and capable of inspecting complex internal geometries.
Matching the profile size to the correct press tonnage ensures adequate force without overstressing the tooling. Gradient billet heating is equally critical. Heating the billet unevenly on purpose helps maintain consistent flow pressure from the beginning to the end of the push, stabilizing wall dimensions. The front of the billet should be hotter than the rear to compensate for the heat generated by friction during the extrusion cycle.
If a facility uses uniform billet heating, the temperature of the metal will spike as it pushes through the die due to friction. This temperature spike alters the flow dynamics mid-push, causing the wall thickness to vary from the front of the extruded length to the back. Gradient heating systems, typically utilizing induction coils, precisely control the temperature profile of the billet, ensuring isothermal extrusion and consistent dimensions along the entire length of the part.
Examine the vendor’s tooling department carefully. In-house die correction capabilities indicate a higher level of process control. Ask about their nitriding schedules. Regular nitriding hardens the bearing surfaces, preventing premature washout. Historical data tracking for tool wear proves they actively manage die lifecycles rather than reacting to failures.
Verify the presence of an in-house die correction team.
Review the documented nitriding schedule for active dies.
Inspect the die storage area for proper handling and environmental controls.
Ask for a demonstration of their die wear tracking software.
Evaluate their process for archiving and replacing end-of-life tooling.
Continuous dimensional monitoring catches defects immediately. Relying solely on end-of-line manual checks allows scrap to pile up unnoticed. Look for partners utilizing laser scanning or ultrasonic thickness measurement directly at the press run-out table. Real-time data enables immediate process adjustments before thousands of pounds of metal are wasted.
Modern extrusion lines integrate these inspection tools directly into the press control system. If the laser scanner detects a wall thickness deviation trending out of tolerance, the system can automatically adjust the ram speed or quench parameters to correct the issue. This closed-loop feedback system represents the gold standard in extrusion quality control and is essential for producing high-precision hollow profiles.
Fixing uneven wall issues requires a solid business case. You must weigh the upfront costs of engineering changes against long-term production efficiencies. Ignoring dimensional defects inevitably leads to higher downstream costs during assembly or field use. A part that fails in the field costs exponentially more than a die redesign.
When evaluating the cost of poor quality, factor in the time spent manually sorting good parts from bad, the cost of secondary machining required to fix out-of-tolerance features, and the impact of delayed shipments on your production schedule. Often, the initial investment in a properly designed die and a capable extrusion partner pays for itself within the first few production runs through improved yield and reduced assembly headaches.
Investing in a redesigned, balanced die requires upfront capital. However, this investment yields a high ROI through long-term scrap reduction. Paying for high scrap rates, manual straightening, or secondary machining destroys project margins over time. Fix the root cause at the die level rather than applying band-aids downstream.
Many engineers hesitate to scrap an existing die because of the sunk cost. This is a logical fallacy. If a die consistently produces a 20% scrap rate due to uneven wall thickness, the cost of that wasted metal and lost press time quickly eclipses the price of a new tool. Work with your extrusion partner to analyze the break-even point for a die redesign based on your annual volume.
Uneven walls frequently lead to overweight profiles. If a wall extrudes thicker than nominal, you consume more raw material per meter. This excess weight increases material costs and impacts the overall project budget. Tight dimensional control directly improves material yield and keeps your purchasing costs predictable.
Aluminum is sold by weight. If your profile is designed to weigh 1.5 kg per meter, but uneven walls cause it to extrude at 1.6 kg per meter, you are paying for 100 grams of useless metal on every single meter produced. Over a large production run, this weight creep severely impacts profitability. Controlling wall thickness is not just a quality issue; it is a fundamental cost control measure.
Modifying dies introduces the risk of production delays. Mitigate this risk by utilizing extrusion simulation software during the design phase. Programs like QForm or Altair predict flow imbalances before cutting steel. Simulation reduces the number of physical die trials required to achieve a stable profile, getting your product to market faster.
Simulation software models the exact temperature, pressure, and flow velocity of the aluminum as it moves through the proposed die geometry. It highlights areas of high stress, predicts mandrel deflection, and shows exactly where the wall thickness will vary. By running multiple iterations in the software, engineers can optimize the bearing lengths and transition radii virtually, ensuring the physical die performs correctly on the very first push.
Uneven wall thickness rarely stems from a single variable. It represents the complex intersection of part design, tooling integrity, and thermal management. Resolving these issues requires a proactive, data-driven approach from both the design engineer and the manufacturer. Buyers must prioritize extrusion partners who offer upfront DFM support. Look for facilities that utilize extrusion simulation and maintain strict in-house die maintenance protocols. A capable partner prevents defects before they reach the press.
Submit your CAD files for a comprehensive manufacturability review before finalizing designs.
Request a detailed tooling audit and maintenance history from your current extrusion supplier.
Consult with an extrusion engineer to optimize your profile geometry for balanced metal flow.
Implement continuous in-line monitoring requirements for all future high-volume extrusion runs.
A: There is no universal maximum. Safe variation depends on the alloy, press size, and profile geometry. Generally, engineers recommend keeping adjacent wall thickness ratios below 2:1 to prevent severe distortion and flow imbalances during extrusion.
A: Tube eccentricity specifically refers to the internal void shifting off-center. This causes one side of the tube to be thicker while the exact opposite side is thinner. Standard variation might involve localized thickening due to die wear or poor design.
A: No, wall thickness cannot be corrected after cooling. Post-extrusion processes like stretching only correct straightness and bowing. Dimensional thickness is permanently set once the metal exits the die and quenches.
A: Thick and thin walls cool at different rates. The thicker section retains heat longer and shrinks more slowly. This thermal imbalance pulls on the thinner section, causing the profile to bow, warp, or twist during the quenching process.
A: Harder alloys, like the 7000 series, require significantly higher extrusion pressures to flow through the die. This increased pressure puts immense stress on the internal mandrel, increasing the risk of deflection and resulting in uneven walls.
A: Bearing length acts as a friction brake. Tool designers lengthen the bearing in wider sections to slow the metal down. They shorten it in narrow sections to speed the metal up. This balances the exit velocity across the entire profile.
A: Uneven walls cause localized thermal variations during cooling. These variations alter the metal's micro-structure and grain size. When anodized, these different grain structures absorb the chemical finish unevenly, resulting in visible streaks, sink marks, or color variations.
